INTRODUCING THE MP SEATING treatment chairs:
DESIGNED WITH YOU IN MIND

We are proud to introduce the MP Seating Treatment Chairs, a revolutionary chair specifically designed in close collaboration with “clinic stakeholders” – including patients, biomed techs, nurses, and facility administrators – over a rigorous multi-year development process. At MP Seating Inc., our commitment is unwavering: to design, engineer, and manufacture the best hemodialysis patient recliner on the market, addressing the critical needs of both patients and caregivers with innovative solutions.

KEY DESIGN CONSIDERATIONS:
PUTTING PATIENT AND CAREGIVER FIRST

Our main design considerations for the MP Seating Hemodialysis Recliner are centered around providing an exceptional experience for everyone involved in the dialysis process. This includes prioritizing patient comfort through features like dual-density seat foam and ultra-soft proprietary upholstery. We’ve also focused on intuitive recline and Trendelenburg operation, eliminating cumbersome cables and cylinders with a simple, accessible foot pedal. Furthermore, we’ve significantly reduced the low cost of ownership by engineering out common failure modes and designing for exceptionally easy in-house maintenance and cleaning. In fact, the tool-free removable seat and back allow for swift and thorough cleaning and even quick replacement of upholstered parts – requiring absolutely no tools or even a screwdriver, ultimately extending the chair’s useful life and minimizing downtime.

CORE FEATURES FOR ENHANCED CARE AND EFFICIENCY

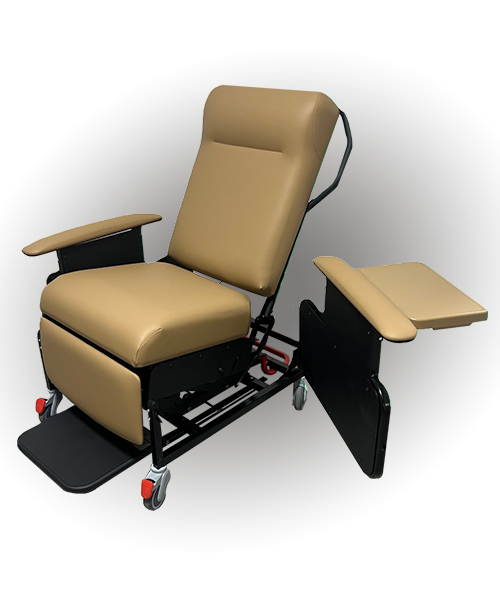

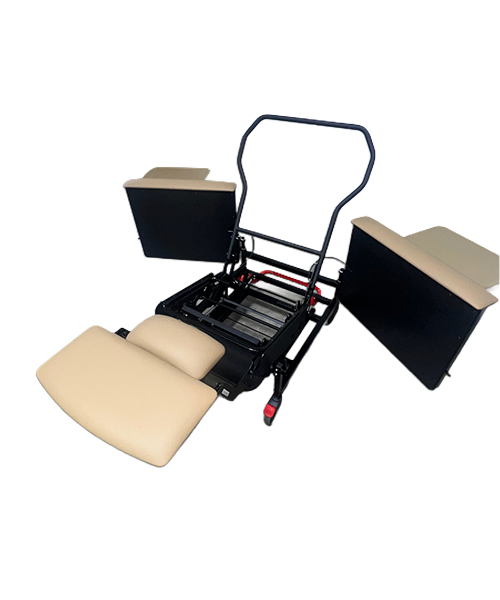

Swing Arms and Side Tables

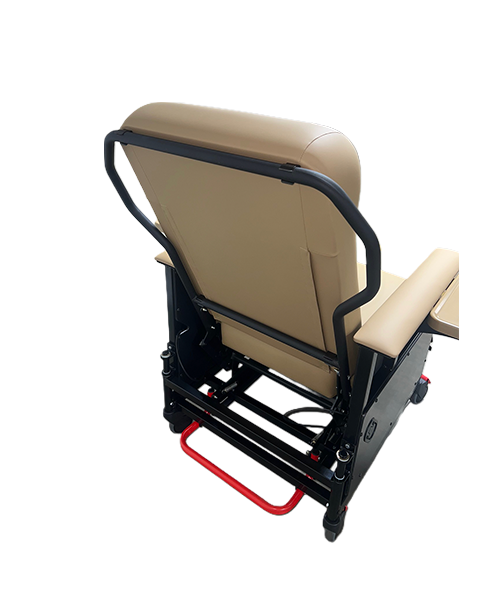

Ergonomic Patient Assist Handle and

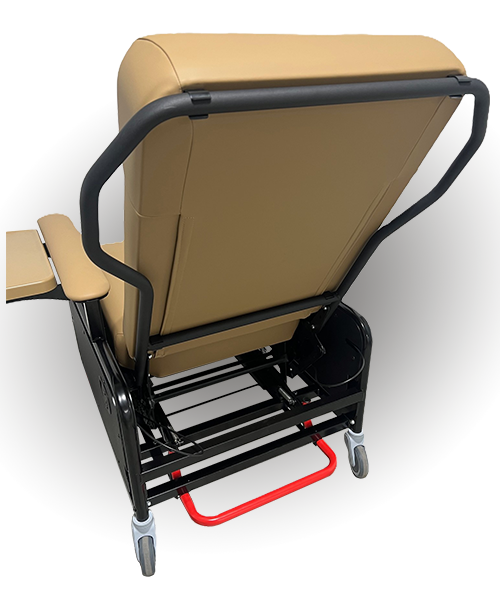

Foot-Actuated Red “Trendelenburg” Bar

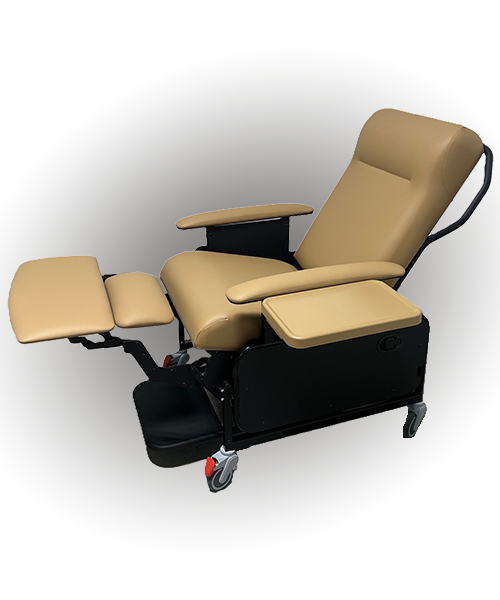

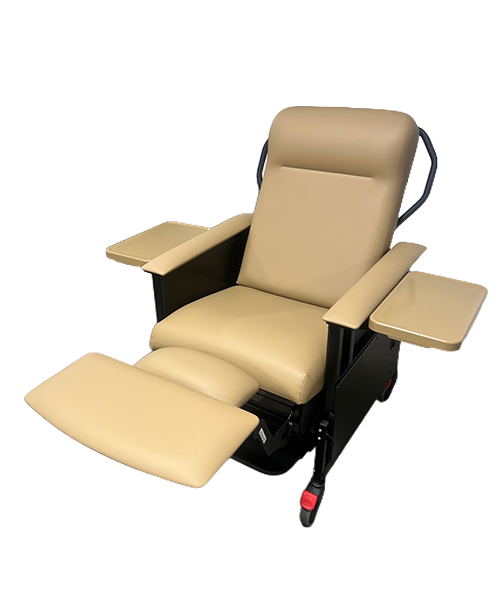

TV Position

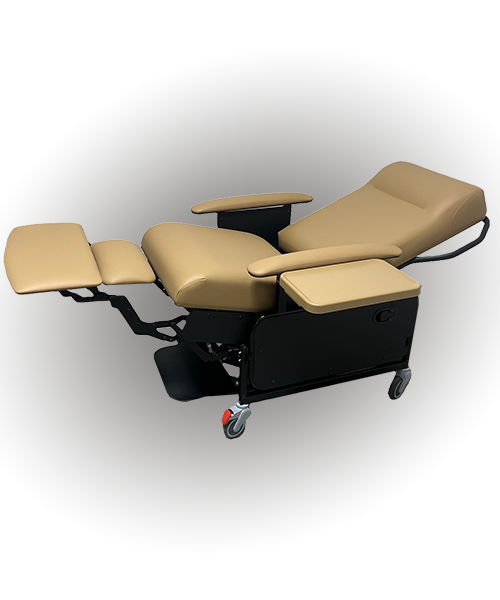

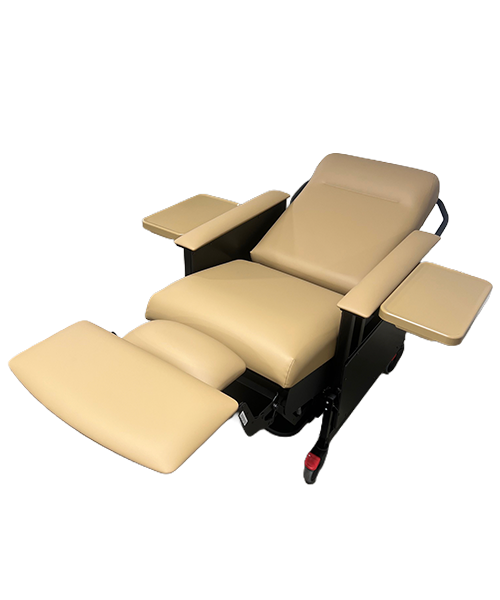

Full Recline

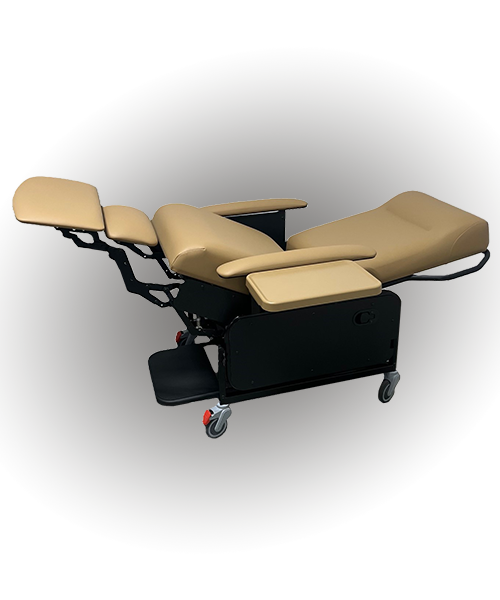

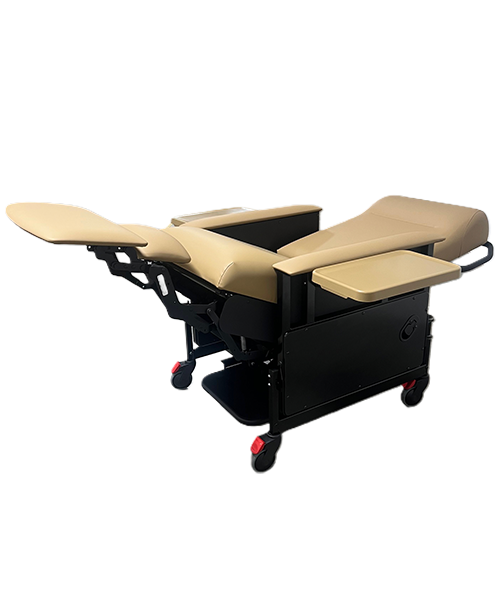

Trendelenburg
(Feet high above heart and head)

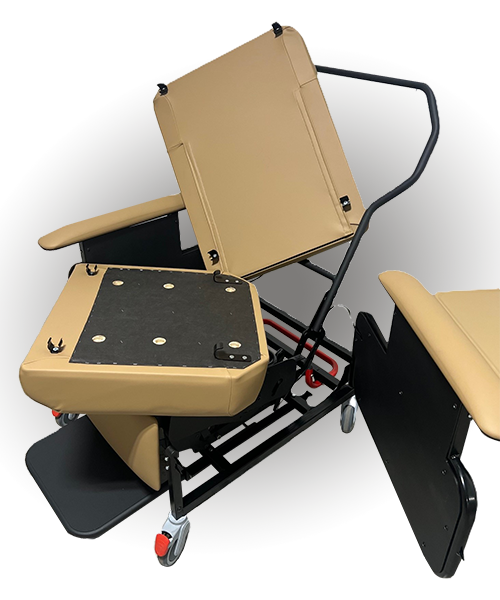

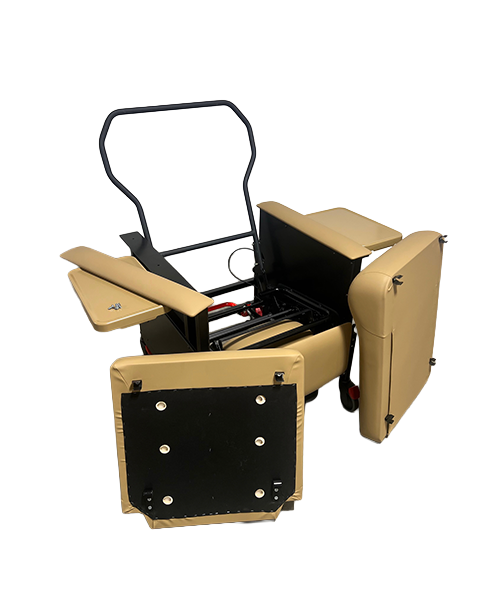

“No Tools” Removable seat and back for
deep cleaning and parts replacement

CORE FEATURES FOR ENHANCED CARE AND EFFICIENCY

Swing Arms and Side Tables

Ergonomic Patient Assist Handle and
Foot-Actuated Red “Trendelenburg” Bar

TV Position

Full Recline

Trendelenburg
(Feet high above heart and head)

“No Tools” Removable seat and back for
deep cleaning and parts replacement

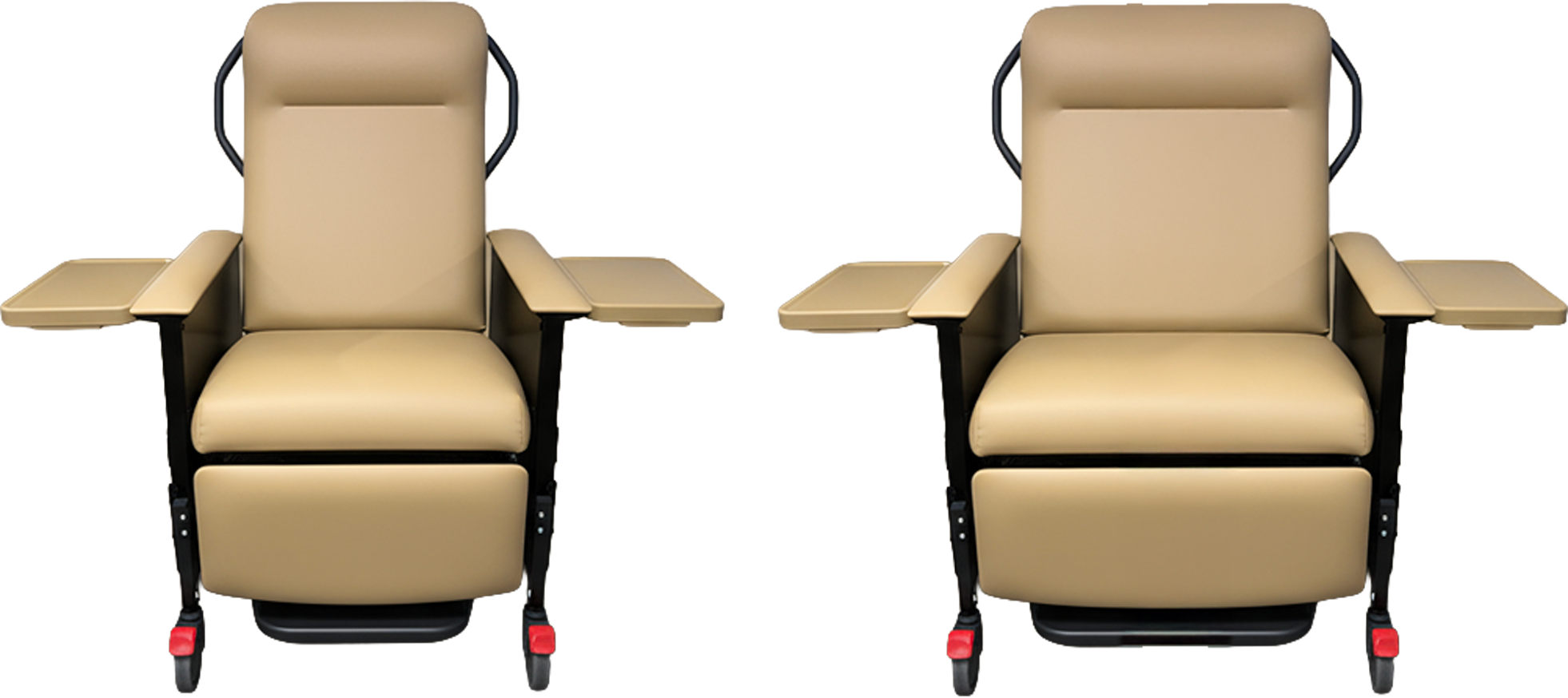

DPL 350 and DLP 500 specifications

Model DPL350 Key Features

  • Standard Recliner
  • Patient Weight Capacity 350#
  • 4 inch casters
  • Trendelenburg
  • 2 Fold Down Side tables

Model DPL350 Key Features

  • Standard Recliner
  • Patient Weight Capacity 350#
  • 4 inch casters
  • Trendelenburg
  • 2 Fold Down Side tables

Model DPL500 Key Features

  • XXL (Bariatric) Recliner
  • Patient Weight Capacity 500#
  • 4 inch casters
  • Trendelenburg
  • 2 Fold Down Side tables

Model DPL500 Key Features

  • XXL (Bariatric) Recliner
  • Patient Weight Capacity 500#
  • 4 inch casters
  • Trendelenburg
  • 2 Fold Down Side tables

Space Requirements

Specifications DPL 350 - Standard DPL 500 -XXL-Bariatric
Overall Depth (front to rear, Upright) 40"D 40"D
Overall Width 32.5"W 36.5"W
Required Space from Rear Wall 6" Wall Clearance 6" Wall Clearance
Open Arms Swing Arms - 180̊ Swing arms 180̊
Open Arms Swing Arm Open Width - 84" Swing Arm Open Width - 88"
Overall Width (Tables) 32.5" (Tables down) 36.5" (Tables down)
Overall Width (Tables) 51" (Tables Up) 55" (Tables Up)
Height (Floor to top of Backrest) 47"H 47"H
Overall Depth (front to rear) 40" D (Upright) 40" D (Upright)
Overall Depth (front to rear) 73"D (Trend) 73"D (Trend)

Specifications

Features DPL 350 - Standard DPL 500 -XXL-Bariatric
Patient Weight Capacity 350 lbs. 500 lbs.
Back Height (from floor/seat) 47"/26.5" 47"/26.5"
Overall Width (2 tables down/up) 32.5"/51" 36.5"/55"
Seat width 24" 28"
Arm Height (from Floor, flat) 30" 30"
Seat Height/Depth 24.5"/21" 24.5"/21"
Upright Overall Depth (side handle) 40" 40"
Single Wheel Casters (4" total lock, front AND rear) 4" 4"
Foot Print of Casters (width and depth) 29"/36" 33"/36"

Clinical Applications

  • In-Clinic Hemodialysis
  • Home Hemodialysis
  • Elderly Care Hemodialysis
  • Long term care Facility
  • Skilled Nursing Facility
  • Oncology
  • Infusion
  • Patient Recovery

Patient Comfort

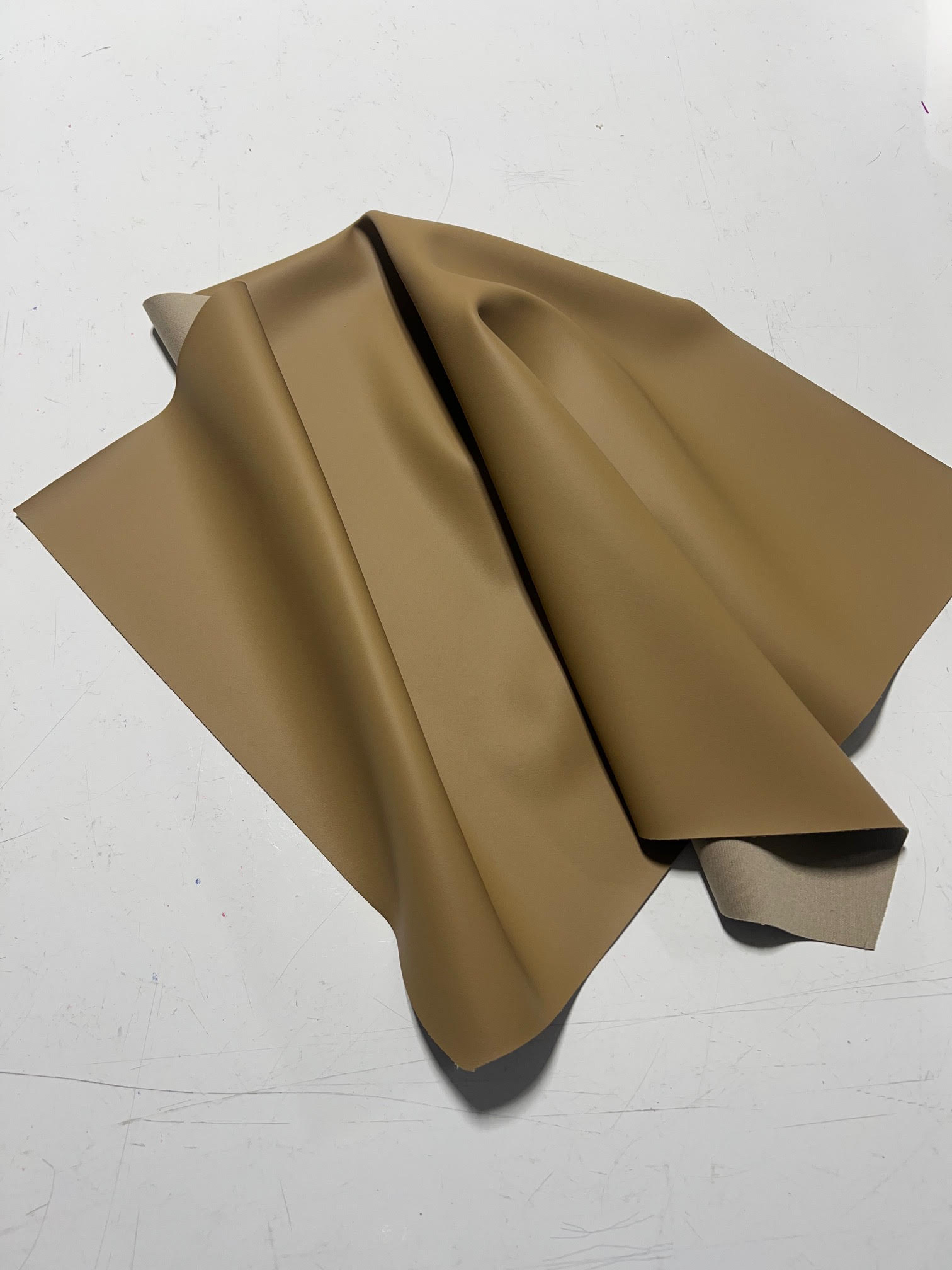

  • Proprietary ultra-soft upholstery material for greater comfort over Vinyl Integrated Headrest in the upholstered backrest.

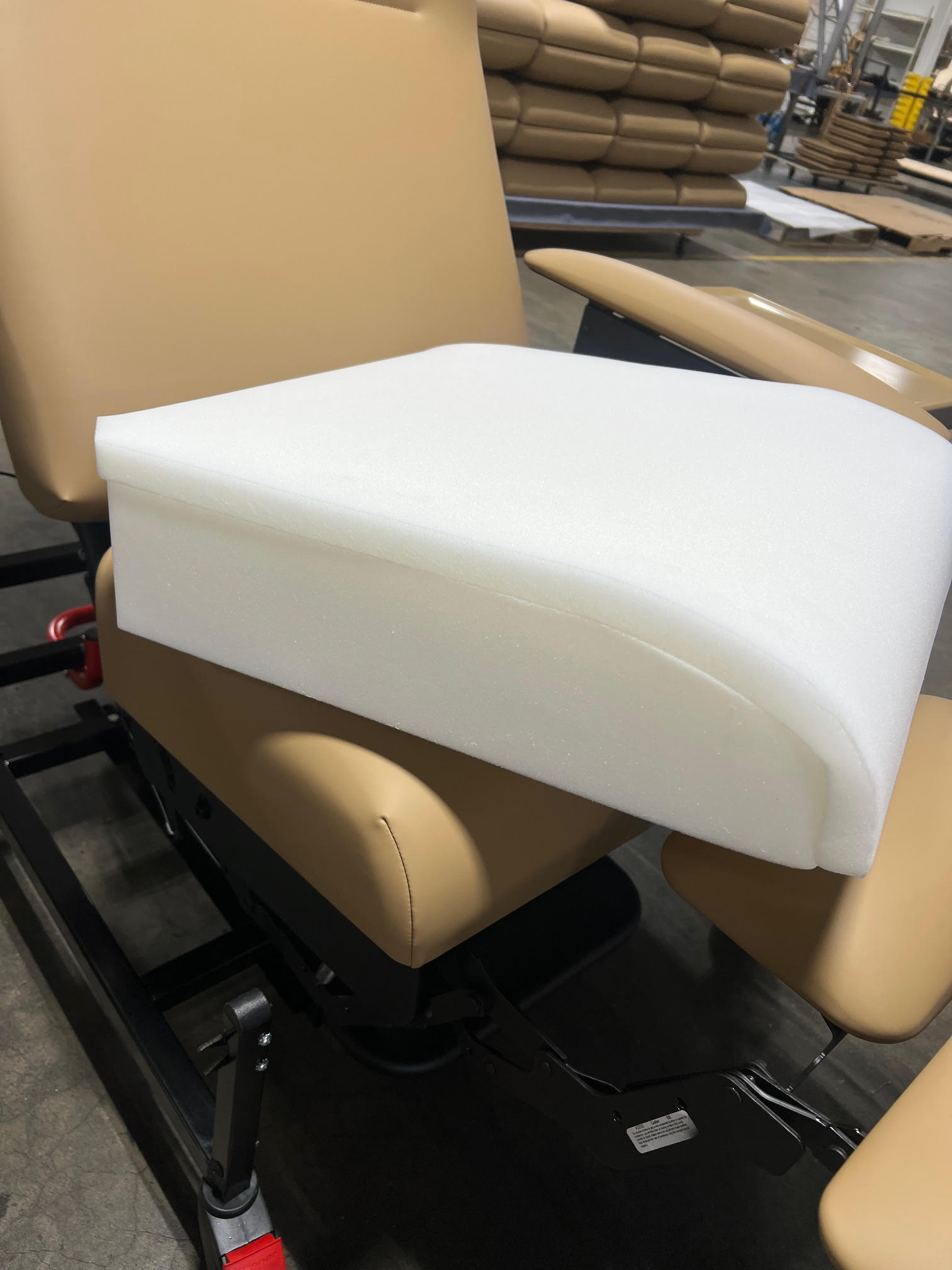

  • Dual density seat foam provides comfort and support for extended treatments.

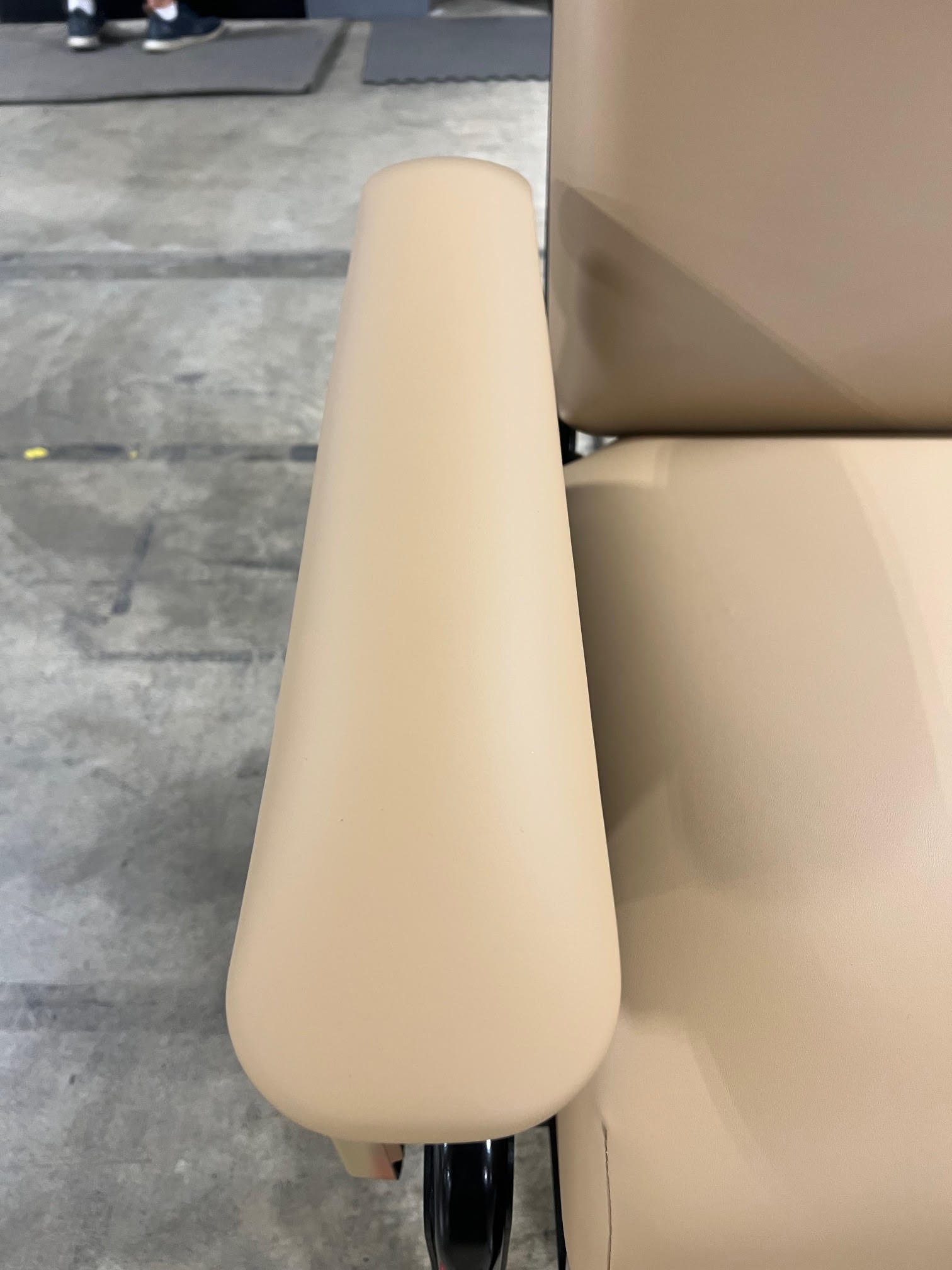

  • Extra Wide Arm Supports on the arms for superior patient comfort.

  • Available Arm Support Cushion Wedge for additional comfort and arm support.

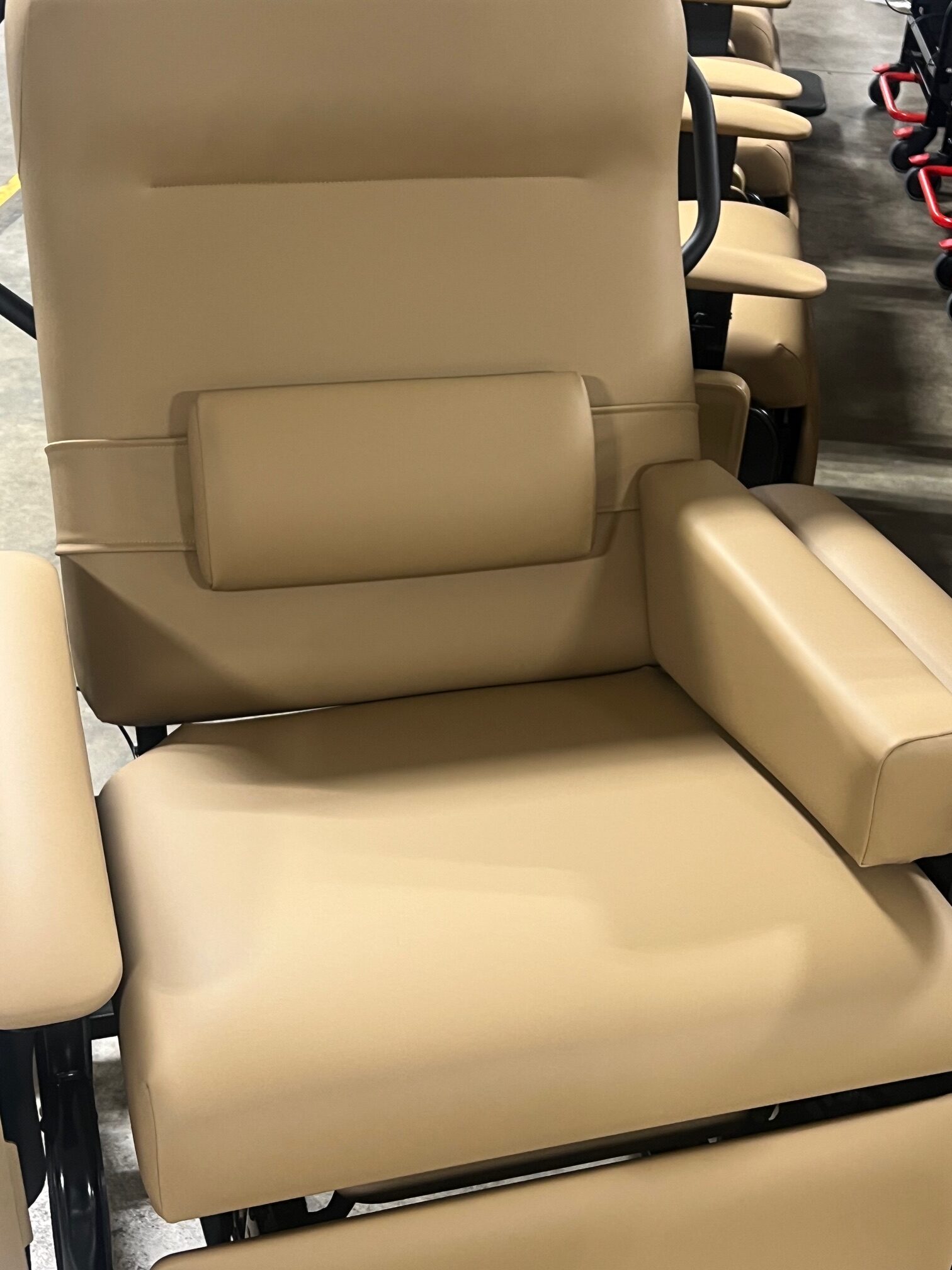

  • Available Adjustable Backrest Support used at the lumbar or for additional neck support.
